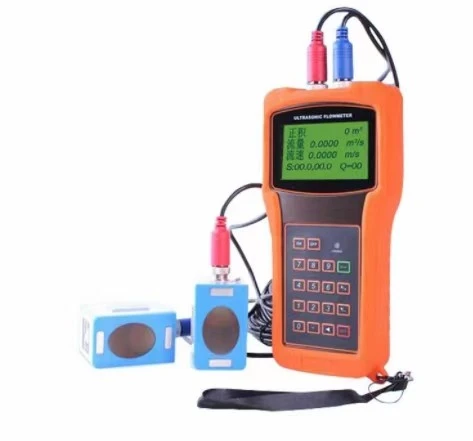

Txais tos siv JY-TUF2000H portable ultrasonic flow meter! ! !
1.Kev piav qhia thiab nta:
Lub handheld flow meter tau hloov kho dua tshiab raws li yav dhau los. Tus tshiab version khaws feem ntau ntawm cov yam ntxwv zoo heev thiab kev ua haujlwm ntawm lub qub version: pulse ntsuas tshuab, ultrasonic ignition thiab me me teeb liab txais Circuit Court, thiab lwm yam. Lub ntsiab kev txhim kho thiab hloov khoom dua tshiab yog nyob rau hauv lub roj teeb fais fab mov Circuit Court thiab transmitter circuit. Tag nrho lwm cov circuits tsuas yog muab tso rau hauv cov ntawv tshiab no, thiab tam sim no peb tau siv cov cuab yeej ntsuas qib siab tshaj plaws thiab tau txais cov qauv ntsuas ultrasonic zoo dua.
Cov khoom siv kho vajtse muaj cov yam ntxwv ntawm kev ua haujlwm yooj yim, siab precision thiab kev ntseeg siab, thaum lub software muab cov neeg siv kev sib raug zoo heev thiab ntau lub zog. Lub patented balanced low-voltage multi-pulse ignition circuit zoo heev txhim kho qhov muaj peev xwm tiv thaiv kev cuam tshuam, tso cai rau lub flowmeter ua hauj lwm ib txwm txawm nyob rau hauv ib puag ncig hnyav xws li nyob ze lub zog zaus transformers.
2.Measurement txoj cai:
JY-TUF2000H handheld flow meter yog tsim los ntsuas qhov ntws ntawm cov kua hauv cov kav dej kaw. Lub sensor yog hom tsis sib cuag nrog clamping, muab cov txiaj ntsig ntawm kev ua haujlwm tsis muaj av thiab kev teeb tsa yooj yim.
Ob lub sensors yog siv, ua raws li ob qho tib si ultrasonic transmitters thiab receivers. Cov sensors yog clamped rau sab nraud ntawm cov yeeb nkab kaw ntawm ib qho kev ncua deb ntawm ib leeg. Cov transducers tuaj yeem ntsia tau siv V txoj kev, qhov twg suab mus los ntawm cov yeeb nkab ob zaug, los yog W txoj kev, qhov twg suab mus los ntawm cov yeeb nkab plaub zaug, los yog Z txoj kev, qhov twg cov transducers yog mounted rau opposite sab ntawm cov yeeb nkab thiab lub suab. Mus hla cov yeeb nkab ib zaug. Kev xaiv ntawm txoj kev teeb tsa yog nyob ntawm tus yam ntxwv ntawm cov yeeb nkab thiab cov kua. Lub ntsuas dej ntws ua haujlwm los ntawm kev sib txuas sib txuas thiab tau txais kev tawg ntawm zaus-modulated suab zog ntawm ob lub sensors thiab ntsuas lub sijhawm mus ncig nws yuav siv lub suab mus ncig ntawm ob lub sensors. Qhov sib txawv ntawm kev ntsuas lub sij hawm thauj mus los yog ncaj qha thiab raug cuam tshuam nrog qhov nrawm ntawm cov kua hauv cov yeeb nkab.
|
|
|
3.Basic Technical Data:
|
Linearity |
0.5% |
|
Rov ua dua |
0.2% |
|
Qhov tseeb |
±1% of reading at rates>0.2 mps |
|
Teb Sijhawm |
0-999 vib nas this, user-configurable |
|
Ceev ceev |
±32 m/s |
|
Cov yeeb nkab loj |
15mm -6000 hli |
|
Totalizer |
7-digit tag nrho rau net, zoo thiab tsis zoo ntws raws |
|
Hom kua |
Yuav ntsuas yuav luag tag nrho cov kua, |
|
Zaub |
4x8 cov cim Suav lossis 4x16 cov ntawv Askiv |
|
Kev sib txuas lus Interface |
RS -232, baud-rate: ntawm 75 txog 57600. |
|
Transducer Cord Ntev |
Standard 5m x 2, yeem 10m x 2 |
|
Fais fab mov |
3 built-in Ni-H roj teeb. Thaum recharged tag nrho nws yuav kav ntev dua 12 teev ntawm kev ua haujlwm. 100V-240VAC rau tus nqi |
|
Cov ntaub ntawv logger |
Built-in cov ntaub ntawv logger tuaj yeem khaws ntau dua 2000 kab ntawm cov ntaub ntawv |
|
Phau ntawv Totalizer |
7-digit press-key-to-go totalizer rau calibration |
|
Khoom siv tsev |
ABS |
|
Case Loj |
210 x 90 x 30 mm |
|
Chav ntsuas hnyav |
500g nrog roj teeb |
4.Sensor xaiv rooj:
|
Clamp-on Hom |
|
Qauv |
Qhov tseeb |
Chav kawm tiv thaiv |
Ntsuas Cov Yeeb Nkab Loj |
Nruab nrab kub |
|
Standrad |
TS -2 |
±1%
|
IP68
|
DN 25-DN100 hli |
-30 degree -90 degree |
|
|
TM -1 |
DN 50-DN700mm |
-30 degree -90 degree |
||||
|
TL -1 |
DN 300-DN3000mm |
-30 degree -90 degree |
||||
|
Kub Standard |
TS-2-HT |
DN 25-DN100 hli |
-30 degree -160 degree |
|||
|
TM-1-HT |
DN 50-DN700mm |
-30 degree -160 degree |
||||
|
TL-1-HT |
DN 300-DN3000mm |
-30 degree -160 degree |
||||
|
Mounting Bracket |
HS |
DN 25-DN100 hli |
-30 degree -90 degree |
|||
|
HM |
DN 50-DN300mm |
-30 degree -90 degree |
||||
|
EB -1 |
DN 300-DN700mm |
-30 degree -90 degree |
||||
|
Kub Kub Mounting Bracket |
HS-HT |
DN 25-DN100 hli |
-30 degree -160 degree |
|||
|
HM-HT |
DN 50-DN300mm |
-30 degree -160 degree |
||||
|
EB-1-HT |
DN 300-DN700mm |
-30 degree -160 degree |
||||
|
Ultra siab kub sensor |
HS-SHT |
DN 25-DN100 hli |
-30 degree -260 degree |
|||
|
HM-SHT |
DN 50-DN700mm |
-30 degree -260 degree |
5.Packing daim ntawv (tus qauv configuration):
Txheeb xyuas cov ntawv ntim khoom kom zoo ua ntej tau txais cov khoom lossis txhim kho lawv.
|
Lub npe |
QTY (pcs) |
|
Chav tsev loj |
1 |
|
Nruab nrab transducer |
2 |
|
Ultrasonic teeb liab cable |
2 |
|
Cov ntaub ntawv kab |
1 |
|
AC adapter |
1 |
|
Coupling tus neeg sawv cev |
1 |
|
Siv stretcher |
2 |
|
Daim kab xev |
1 |
|
Cov neeg siv phau ntawv |
1 |
|
Nqa cov ntaub ntawv |
1 |
Nco tseg: Tus neeg sawv cev sib txuas yog nyob rau hauv daim ntawv muab tshuaj txhuam thiab tsis tso cai rau lub dav hlau, yog li kev thauj khoom thoob ntiaj teb tsis tuaj yeem thauj. Txawm li cas los xij, koj tuaj yeem xaiv: roj lithium-raws li roj (cov roj daj daj), roj, Vaseline, thiab lwm yam.
6. Calibration thiab tom qab muag:
JY-TUF2000H flowmeter cov khoom raug txheeb xyuas ib-rau-ib zaug ua ntej tawm hauv lub Hoobkas kom ntseeg tau tias lub Hoobkas tsim nyog tus nqi yog 100% thiab qhov tseeb ncav cuag 1%.
Thaum lub sijhawm lav, yog tias muaj teeb meem zoo, peb cog lus tias yuav hloov cov cuab yeej tshiab nrog cov tshiab dawb. Yog tias lub sijhawm lav dhau lawm, peb tuaj yeem kho nws dawb.
7. Cov neeg siv khoom tawm tswv yim ntawm kev ua haujlwm ntawm TUF2000H:
8.FAQ:
1. Q: Peb puas tuaj yeem tau txais cov qauv? Dab tsi yog qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis PCS rau qhov ntsuas no?
A: Tau kawg, peb cov MOQ yog 1pcs.
2. Q: Lub sijhawm khoom xa tuaj ntev npaum li cas?
A: Peb cov khoom ntim khoom ib txwm yog 100PCS. Yog tias peb tau txais koj cov nyiaj them poob haujlwm, peb yuav xa tuaj rau koj raws sijhawm.
3.Q: Txoj kev them nyiaj twg tau txais kev txhawb nqa?
A: Peb txhawb nqa: TT them, credit card online them nyiaj, Western Union them, RMB them, LC them.
Yog tias koj muaj lus nug ntxiv, thov koj xav tiv tauj peb thiab peb yuav teb tag nrho koj cov lus nug! ! !
