1.Product piav qhia:
TUF2000SW hom phab ntsa-mounted ultrasonic flowmeter mainboard qhov kev pab cuam yog ruaj khov dua. Lub plhaub khoom ntawm tus tswv tsev yog aluminium alloy. Tus tswv tsev tuaj yeem ntsia tau rau ntawm phab ntsa, ntsuas lub thawv, thiab lub thawv xa khoom. Kev tiv thaiv qib yog IP65. Lub sensor yog ib qho tseem ceeb casting, thiab qib tiv thaiv mus txog IP68. Nws tuaj yeem muab tso rau hauv dej rau lub sijhawm ntev thiab tsim nyog rau cov yeeb nkab diameters ntawm DN15 txog DN6000. Cov cuab yeej no muaj ntau yam kev siv thiab yooj yim rau nruab. Nws tsis tas yuav ua kom puas lub raj xa dej thiab tuaj yeem ntsia tau thaum lub sijhawm ua haujlwm ntawm cov kav dej. Qhov tseeb yog siab li 1%. Nws yog thawj cov cuab yeej siv rau kev ntsuas cov kav dej hloov pauv hauv ntau qhov kev lag luam. Tsis tas yuav tsum muaj kev saib xyuas niaj hnub, thiab nws muab kev ntsuas ruaj khov thiab raug rau lub sijhawm ntev. Nws siv cov thev naus laus zis thev naus laus zis thev naus laus zis thev naus laus zis thiab kev txawj ntse hloov kho sonic thev naus laus zis los ua kom nws ntsuas kev ruaj ntseg zoo dua. Nyob rau tib lub sijhawm, patented suab tsom siv thev naus laus zis nws siv tau zoo txhim kho lub teeb liab txais thiab qhov zoo ntawm cov khoom thaum ntsuas tas li.
2. Daim ntawv thov Scope:
Ultrasonic hom flow meter muaj lub zog muaj zog, kev suav ceev ceev, thiab muaj peev xwm tiv thaiv kev cuam tshuam. Nws yog siv dav hauv kev ntsuas online ntawm ntau yam kua ntws hauv cov chaw lag luam. Nws yog dav siv nyob rau hauv kais dej, ua liaj ua teb irrigation, dej phwj kho mob, cua sov tshuab, petrochemicals, fais fab nroj tsuag, tsuas, ntawv mills, steel mills, cua txias nqi thiab lwm yam lag luam.
3. Cia li sau cov ntaub ntawv hauv qab no:
⑴. Cov ntaub ntawv khaws cia rau 512 hnub dhau los / 128 lub hlis / 10 xyoo;
⑵. Lub sijhawm thiab cov tsheb sib txuas ntawm 64 lub zog kawg rau thiab tawm cov xwm txheej;
⑶. Cov xwm txheej ua haujlwm hauv 32 hnub dhau los;

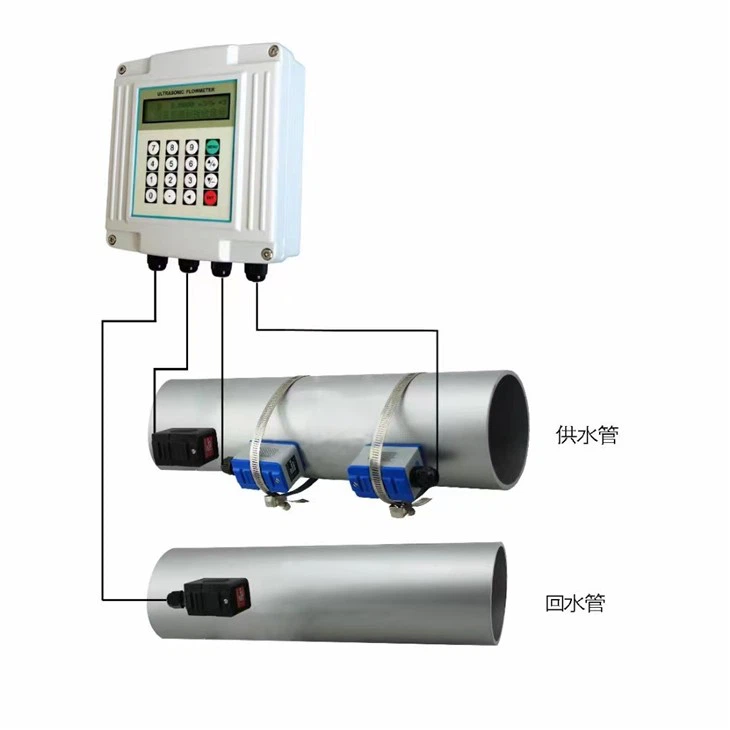

⑷. Lub sensor ntws thiab ntsuas kub tuaj yeem txuas rau tib lub sijhawm kom ua tiav qhov ntsuas kub thiab ntsuas kub;
⑸. Nws los ntawm cov txheej txheem nrog cov zis tawm, 4-20ma tso zis, thiab RS485 kev sib txuas lus raws tu qauv kom ua tiav kev sib txuas lus zoo nrog kev sib txuas lus lossis kev tswj hwm, thiab tuaj yeem nruab nrog SD daim npav cia (yeem) kom ua tiav cov ntaub ntawv kaw thiab khaws cia;
4. Basic parameters:
| Qhov tseeb | 1% |
Flow rate range | 0-± 10m / s, Kev ntsuas pem hauv ntej thiab rov qab |
Cov yeeb nkab loj | DN 15 - DN6000 |
Hom kua | Dej, dej hiav txwv, dej phwj tuaj, npias, roj Ib homogeneous kua uas tuaj yeem ua ultrasonic tsis |
Cov khoom siv yeeb nkab | Hlau, stainless hlau, cam khwb cia hlau, PVC, txhuas, FRP thiab lwm cov kav dej ntom ntom |
Cov zis tawm | 1 channel 4-20Ma tam sim no tso zis, impedance 0-1K, raug 0.1% 1 channel OCT mem tes tso zis, mem tes dav 6-1000ms |
Teeb liab input | 3 channels 4-20Ma tam sim no cov tswv yim, tuaj yeem siv los ua cov ntaub ntawv sau |
Kev sib txuas lus Interface | Kev rho tawm RS485 serial interface, txhawb Modbus raws tu qauv |
cov ntaub ntawv khaws cia | SD daim npav tsis tu ncua khaws cov txheej txheem thiab ntsuas cov txiaj ntsig (yeem) |
Fais fab mov | DC8-36V lossis AC85-264V |

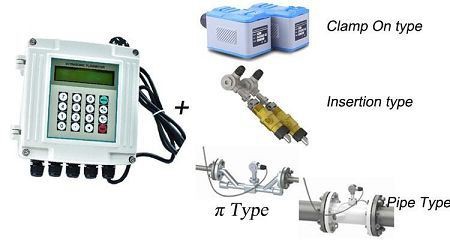

5.Sensor configuration thiab siv cov yeeb nkab txoj kab uas hla:
Clamp-on Hom | Qauv | Qhov tseeb | Chav kawm tiv thaiv | Ntsuas Cov Yeeb Nkab Loj | Nruab nrab kub |
Standrad | TS -2 | ±1% | IP68 | DN 25-DN100 hli | -30degree-90degree |
TM -1 | ±1% | IP68 | DN 50-DN700mm | -30degree-90degree | |
TL -1 | ±1% | IP68 | DN 300-DN3000mm | -30degree-90degree | |
Kev ntsuas kub siab | TS-2-HT | ±1% | IP68 | DN 25-DN100 hli | -30degree-160degree |
TM-1-HT | ±1% | IP68 | DN 50-DN700mm | -30degree-160degree | |
TL-1-HT | ±1% | IP68 | DN 300-DN3000mm | -30degree-160degree | |
Mounting Bracket | HS | ±1% | IP68 | DN 25-DN100 hli | -30degree-90degree |
HM | ±1% | IP68 | DN 50-DN300mm | -30degree-90degree | |
EB -1 | ±1% | IP68 | DN 300-DN700mm | -30degree-90degree | |
Kub Kub Mounting Bracket | HS-HT | ±1% | IP68 | DN 25-DN100 hli | -30degree-160degree |
HM-HT | ±1% | IP68 | DN 50-DN300mm | -30degree-160degree | |
EB-1-HT | ±1% | IP68 | DN 300-DN700mm | -30degree-160degree | |
Ultra siab kub sensor | HS-SHT | ±1% | IP68 | DN 25-DN100 hli | -30degree-260degree |
HM-SHT | ±1% | IP68 | DN 50-DN700mm | -30degree-260degree |

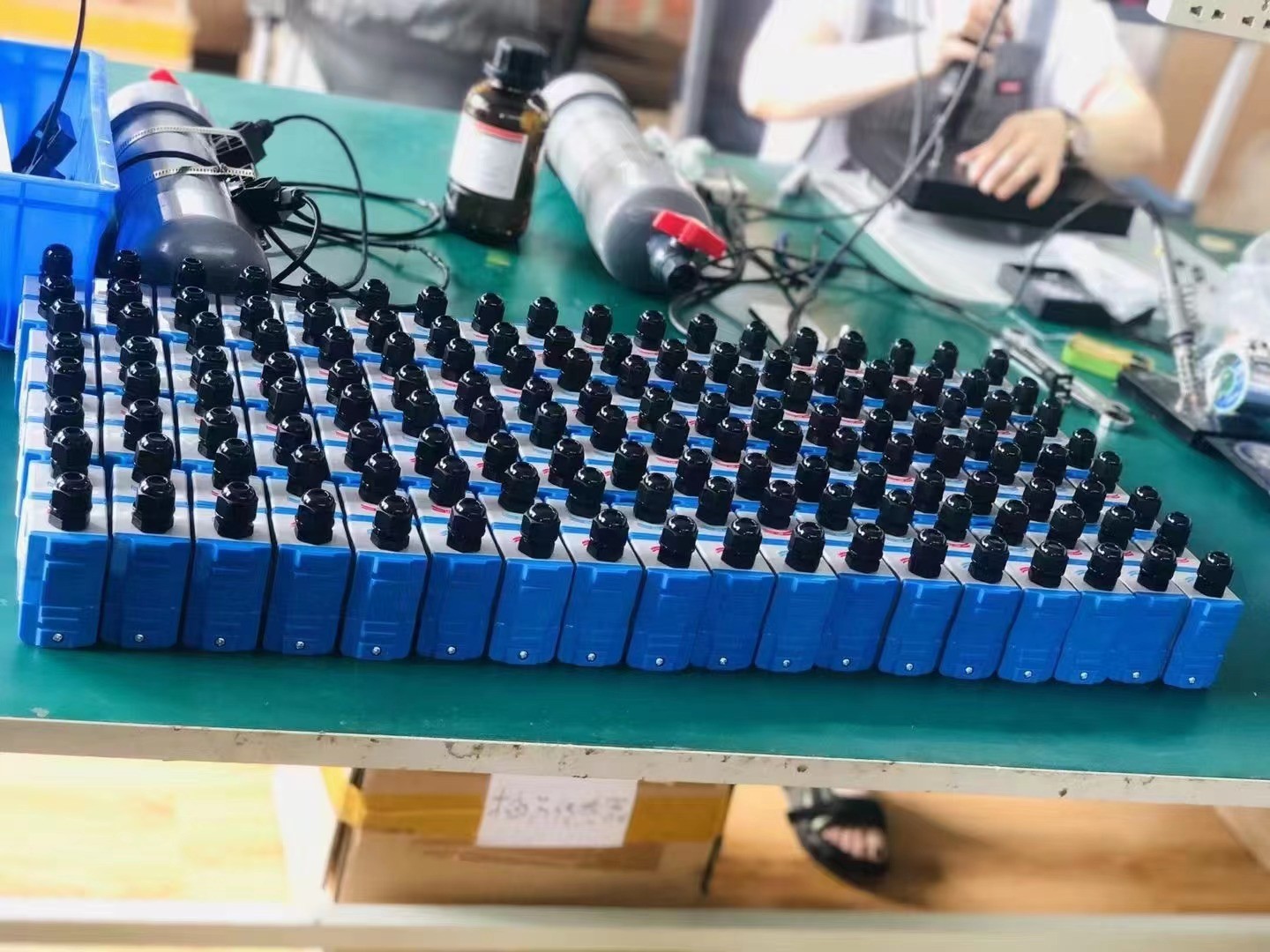

6. Rhiav ntau lawm duab:
Henan Junyuan Automation Equipment Co., Ltd. yog lub chaw tsim khoom ntawm ultrasonic hom flow meter. Peb muaj lub chaw muag khoom muab faib ua chav muag khoom hauv tsev thiab chaw ua lag luam thoob ntiaj teb. Kev muag khoom txhua xyoo yog qhov loj heev, yog li peb muaj nyiaj ntsuab los yuav ntau cov khoom siv raw hauv ib lub sijhawm, uas yog qhov zoo heev tswj cov nqi tsim khoom thiab muab cov neeg siv nrog tus nqi txhawb nqa thaum ua kom zoo.
 |  |
 |  |
7. On-site installation daim duab:
 |  |
8. Lub Hoobkas tshuaj xyuas thiab ntim khoom:
Vim tias qhov hnyav ntawm TUF2000 ultrasonic flowmeter yog lub teeb, qhov hnyav ntawm ib thooj yuav tsum yog 3.8KG, thiab qhov ntim hnyav yuav tsum yog 4.3KG. Yuav kom txuag tau cov nqi tsheb thauj mus los rau cov neeg siv khoom, nws tau ntim rau hauv cov thawv, tab sis muaj cov npuas dej tsis zoo hauv lub thawv, uas yog qhov zoo heev Kev nyab xeeb ntawm kev thauj mus los ntawm cov cuab yeej tiv thaiv.
 |
 |  |
9.FAQ:
1. Q: Qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
A: Peb MOQ yog 1PCS.
2. Q: Qhov tseeb npaum li cas? Yuav ua li cas txog lub warranty?
A: Peb qhov tseeb yog 1%. Lub warranty yog 18 lub hlis. Thaum lub sijhawm lav, yog tias cov khoom muaj teeb meem zoo, peb tuaj yeem muab cov cuab yeej tshiab rau koj dawb.
3. Q: Koj puas yog cov chaw tsim khoom?
A: Yog, peb yog Tuam Tshoj flowmeter chaw tsim tshuaj paus.
4.Q: Koj txoj kev them nyiaj yog dab tsi?
A: Peb txhawb TT them nyiaj, them nyiaj hauv online credit card, Western Union them, RMB them, LC them.
5. Q: Lub sijhawm khoom xa tuaj ntev npaum li cas?
A: Hauv qab 100PCS, lub sijhawm tsim khoom ib txwm kwv yees yog 3 hnub ua haujlwm. Shipping lub sij hawm: Peb yuav tsum paub koj tej kev yuav khoom kom muaj nuj nqis thiab tus me nyuam chaw nyob, thiab xaiv txoj kev uas tsim nyog shipping rau koj, yog li ntawd peb yuav xam lub sij hawm shipping.
Yog tias koj muaj lus nug ntxiv, thov hu rau peb. Txhua tus npoj yaig ntawm Henan Junyuan Automation Equipment Co., Ltd. txais tos koj cov lus nug txhua lub sijhawm! ! !
