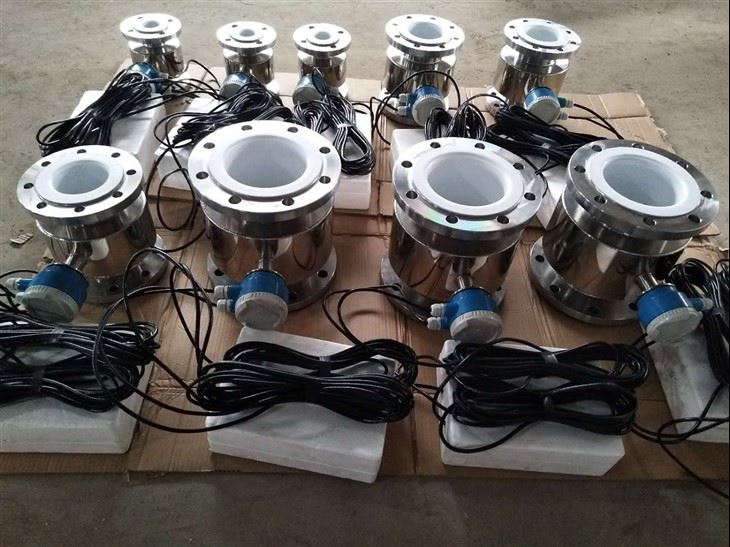

Taw qhia ntawm tej thaj chaw deb electromagnetic flowmeter:
Cov chaw taws teeb electromagnetic flowmeter yog cais los ntawm lub sensor thiab lub converter. Tus qauv kev sib txuas ntawm lub converter thiab lub sensor yog 10M * 2 cable (tuaj yeem kho raws li cov neeg siv khoom xav tau). Nws yog qhov tsim nyog rau cov kav dej hauv av hauv av lossis ntawm qhov chaw siab, uas tsis yooj yim rau kev nyeem ntawv 'meter'. Nyeem qhov chaw teeb tsa. Hom chaw taws teeb tuaj yeem ua rau IP68 tiv thaiv qib.
Txoj kev muab fais fab tuaj yeem xaiv ua ntej:
1.AC85V-264V,
2.DC18V-36V,
3. Roj teeb muaj zog,
4. Hnub ci zog
ntsuas txoj cai:
Thaum lub electromagnetic flowmeter ntsuas qhov ntws, cov kua txiav cov magnetic teb perpendicular mus rau cov kev taw qhia ntws, thiab cov ntws ntawm conductive kua induces ib tug voltage teeb liab proportional rau qhov nruab nrab txaus tus nqi (uas yog, lub ntim ntws), yog li ntsuas ntws. kua yuav tsum muaj yam tsawg kawg nkaus conductivity. Lub teeb liab raug kuaj pom los ntawm ob lub electrodes nyob rau hauv kev sib cuag ncaj qha nrog cov kua thiab xa mus rau lub electromagnetic flowmeter transducer los ntawm ib tug cable. Tom qab ntawd nws yog hloov dua siab tshiab rau hauv ib qho kev sib koom ua qauv teeb liab. Tom qab ib tug series ntawm kev ua cov digital, cov ndlwg ntws thiab instantaneous flow yog tso tawm kom pom ntawm lub converter screen tib lub sij hawm.
Hom kev txiav txim siab xaiv:
1. Cov koob ntawm cov ntse electromagnetic flowmeters yog tsim rau kev siv dej hauv nroog, dej phwj hauv nroog, kev tswj xyuas dej khib nyiab, thiab kev tiv thaiv ib puag ncig. Hom huv huv tuaj yeem ntsuas qhov ntsuas ntawm cov khoom noj khoom haus xws li dej haus, mis nyuj, npias, dej haus, thiab lwm yam, nrog rau kev ntsuas cov kua dej corrosive xws li cov dej khib nyiab, muaj zog acid thiab muaj zog alkali, thiab lwm yam.
2. Lub neej ntawd installation ib feem yog flange kev twb kev txuas, yog tias koj xav tau lwm txoj kev txuas kev txuas, thov qhia rau peb paub ua ntej xaj.
3. Default siab theem: DN6-DN250 siab yog 1.6Mpa
DN{{0}}DN1000 siab ntsuas yog 1.0Mpa
DN{0}}DN2800 siab ntsuas yog 0.6Mpa
Thov qhia rau peb paub thaum xaj yog tias yuav tsum muaj kev ntsuas siab dua
magnetic coil:
Peb flowmeter siv tag nrho-tooj liab kauj los xyuas kom muaj kev ruaj khov nyob rau lub sijhawm ua haujlwm sib nqus, tsis yooj yim rau hnub nyoog, ntsuas qhov tseeb thiab lub neej ua haujlwm ntev.
Electrode installation:
Nruab 3 electrodes, uas yog: zoo electrode, tsis zoo electrode thiab hauv av electrode, tsis tas yuav nruab ib lub nplhaib hauv av,
welding department:
Peb cov kws ua haujlwm welding muaj tsawg kawg yog 8 xyoo ntawm kev ua haujlwm vuam,
Slurry Application Flow Meter Calibration Unit:
Peb lub Hoobkas muaj cov cuab yeej ua haujlwm tshaj lij thiab cov kws tshaj lij calibration engineers. Thaum cov av nkos daim ntawv thov flowmeter tawm ntawm lub Hoobkas, tus kws tshaj lij calibration engineer siv {{0}}} taw tes calibration txoj kev los calibrate lub flowmeter ib-rau-ib los xyuas kom meej tias qhov tseeb ntawm cov flowmeter tuaj yeem ncav cuag {{5} }.5 feem pua , mus txog 0.5 feem pua . mus txog 0.2 feem pua.
FAQ:
1. Lo lus nug: Yuav ua li cas rau nruab qhov chaw taws teeb electromagnetic flowmeter qauv?
A: Kev teeb tsa yooj yim heev, thiab peb muab phau ntawv qhia kev teeb tsa nrog cov khoom, thiab koj tuaj yeem tiv tauj peb cov neeg muag khoom lossis engineers txhua lub sijhawm los coj kev teeb tsa.
2. Lo lus nug: Yuav ua li cas xaiv txoj kev ntws?
Teb: Yog. Raws li koj daim npav ID thiab ntws ntau yam. Peb muaj kev cob qhia kws tshaj lij los pab koj xaiv qhov zoo flowmeter.
3. Q: Kuv puas tuaj yeem tau txais cov qauv?
A: Yog, peb muaj cov ntaub ntawv hauv Tshuag thiab tuaj yeem pab koj tau txais cov qauv sai li sai tau.
4. Q: MOQ yog dab tsi?
A: Peb MOQ yog 1PCS.
5. Q: Kuv puas tuaj yeem tuaj xyuas koj lub Hoobkas?
A: Tau kawg, koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm yog tias koj xav tau.
6. Q: Peb puas tuaj yeem ua koj tus neeg sawv cev?
A: Yog, koj yuav tsum hu rau peb tus neeg muag khoom,
7.Q: Txoj kev them nyiaj yog dab tsi?
A: Cov kev them nyiaj peb txhawb nqa yog: TT them nyiaj, credit card online them nyiaj, Western Union them, LC them,
Yog tias koj xav paub ntau ntxiv, thov hu rau kuv, peb yuav teb koj cov lus nug hauv lub sijhawm, thiab peb yuav muab cov khoom zoo thiab cov kev pabcuam zoo rau koj.
