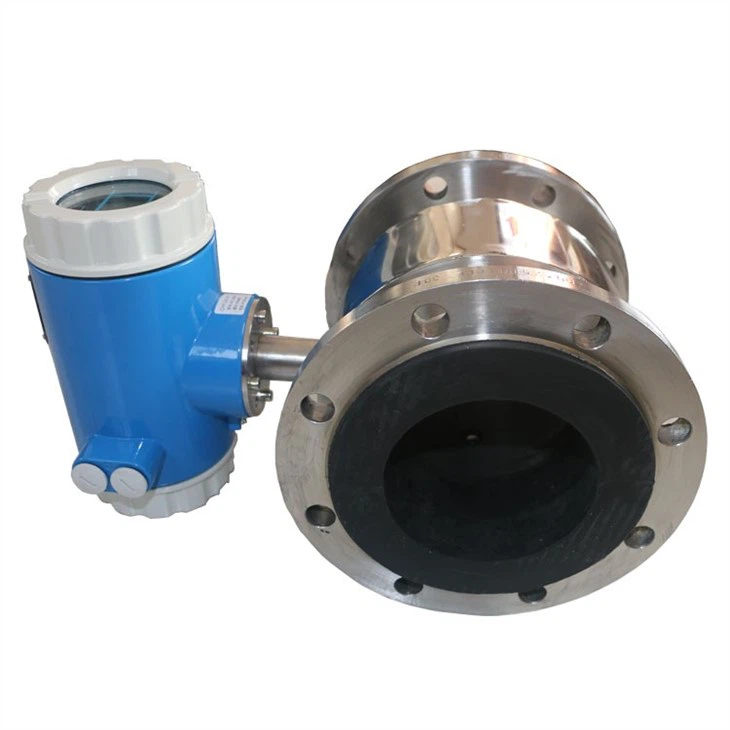

Electromagnetic dej ntws meter
Nta:
1): Lub converter txais 16 high-kev ua tau zoo microprocessors, 2x16LCD zaub, yooj yim parameter teeb thiab txhim khu kev qha programming.
2): Cov ntaub ntawv pov thawj tawg, siv rau hauv qhov chaw tawg-pov thawj.
3): Lub nominal txoj kab uas hla ntawm koob yog DN3-DN3000, thiab cov sensor hauv ob sab phlu thiab electrode cov ntaub ntawv muaj ntau yam kev xaiv.
4): Lub converter txais ib txoj kev zoo siab tshiab, kev siv hluav taws xob tsawg, qhov chaw ruaj khov, thiab siab precision.

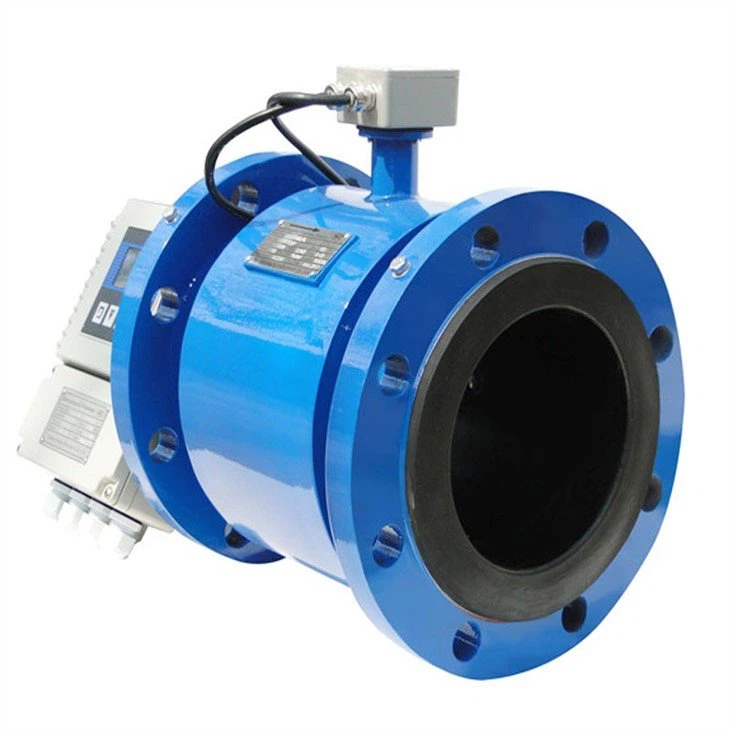

5); Lub converter tuaj yeem ua ke lossis sib cais nrog lub sensor.
6): Kev ntsuas tsis cuam tshuam los ntawm kev hloov pauv hauv cov kua dej ntom ntom, viscosity, kub, siab thiab conductivity.
7): JYLDE electromagnetic flowmeter yog ob txoj kev ntsuas, nrog peb lub tshuab xam zauv: zoo tag nrho, rov qab tag nrho qhov sib txawv;
8): lub flowmeter tuaj yeem tso saib qhov zoo thiab qhov tsis zoo, thiab muaj ntau qhov tso tawm: tam sim no, Pulse, digital kev sib txuas lus, HART.
9): Lub converter siv nto mount technology (SMT) nrog rau kev kuaj xyuas tus kheej thiab kuaj tus kheej ua haujlwm.
10): Tsis muaj cov kua dej tiv thaiv thaiv hauv cov kav dej ntsuas, tsis muaj qhov poob siab, thiab cov kev xav tau qis rau cov kav dej ncaj nraim.Types ntawm electromagnetic flowmeters
Parameter
Khoom npe | electromagnetic dej ntws meter |
Calibre | DN6-DN3000 |
Nominal Siab | 0.6-4.0MPa (Tshwj xeeb siab tuaj yeem kho tau) |
Qhov tseeb | 0.2% (DN15-DN600), 0.5% (DN700-DN3000) |
Cov ntaub ntawv liner | PTFE, PFA, F46, Neoprene, Polyurethane |
Hom hluav taws xob | SS316,HB,HC,TI,TA |
Ambient humidity | 5-100% RH (kwv yees humidity) |
Ambient kub | -25 ℃ to +60 ℃ |
Kev ntsuas ntau | 1500: 1, ntws tus nqi< 15m=""> |
Hom qauv | Integrate hom, Tej thaj chaw deb hom, submersible hom, ex-proof hom |
Kev tiv thaiv qib | IP65, IP68 |
Ex-proof Mark | ExmdIIBT4 |
Cov khoom txheem | JB/T9248-1999 electromagnetic flowmeter |
Kev xaiv cov khoom siv hauv ob sab phlu
| Cov khoom siv hauv ob sab phlu | Lub ntsiab kev ua tau zoo | Scope ntawm daim ntawv thov |
PTFE | 1.1. Cov khoom siv ruaj khov tshaj plaws ntawm cov yas hauv cov khoom siv uas tiv taus kub kub hydrochloric acid, sulfuric acid thiab aqua regia, tab sis kuj tiv taus cov kua qaub thiab ntau yam organic solvents, intolerance chlorine trifluoride, kua oxygen, siab tshaj tawm kua oxygen, ozone corrosion. 2.Kev hnav tsis zoo | Concentrated acid, alkali thiab lwm yam corrosive media |
PFA | Corrosion kuj nrog PTEF, muaj zog tiv thaiv tsis zoo siab | Yuav siv tau rau lub xeev siab tsis zoo |
F46 | 1.Corrosion kuj nrog PTEF. 2.Can tiv taus qis hnav thiab tsim kua muag. 3. Muaj zog tiv thaiv tsis zoo siab. | Nrog PTFE 2.Yuav siv tau rau cov xov xwm tsis tshua muaj abrasive |
Neoprene | 1.Muaj kev yooj yim heev, qib siab tensile quab yuam, hnav tsis kam. 2.Resistant mus rau qhov tsis tshua muaj concentrated acid, alkali, ntsev nruab nrab corrosion, corrosion resistant rau oxidizing media. | Dej, dej phwj tuaj, tsis muaj zog abrasive av, pulp |
Polyurethane | 1.Nws muaj kev hnav zoo heev (sib npaug rau 10 npaug ntawm cov roj hmab ntuj). 2 acid, alkali kev ua haujlwm tsis zoo. 3 Tsis txhob siv dej sib xyaw nrog cov kuab tshuaj organic. | Muaj zog nruab nrab hnav pulp, thee slurry, av nkos thiab lwm yam |
Flow Range
Flow rate ---- flow comparison rooj | |||||||
| 0.01 | 1 | 2 | 3 | 4 | 5 | 15 |
15 | 0.0064 | 0.6362 | 1.2723 | 1.9085 | 2.5447 | 3.1809 | 9.5426 |
20 | 0.0113 | 1.1310 | 2.2619 | 3.3929 | 4.5239 | 5.6549 | 16.9646 |
25 | 0.0177 | 1.7671 | 3.5343 | 5.3014 | 7.0686 | 8.8357 | 26.5072 |
40 | 0.0452 | 4.5239 | 9.0478 | 13.5717 | 18.0956 | 22.6195 | 67.8584 |
50 | 0.0707 | 7.0686 | 14.1372 | 21.2058 | 28.2743 | 35.3429 | 106.0288 |
65 | 0.1195 | 11.9459 | 23.8919 | 35.8377 | 47.7836 | 59.7295 | 179.1886 |
80 | 0.1810 | 18.0956 | 36.1911 | 54.2867 | 72.3823 | 90.4779 | 271.4336 |
100 | 0.2827 | 28.2743 | 56.5487 | 84.8230 | 113.0973 | 141.3717 | 424.1150 |
150 | 0.6362 | 63.6173 | 127.2345 | 190.8518 | 254.4690 | 318.0863 | 954.2588 |
200 | 1.1310 | 113.0973 | 226.1947 | 339.2920 | 452.3893 | 565.4846 | 1696.4600 |
300 | 2.5447 | 254.4690 | 508.9380 | 763.4070 | 1017.8760 | 1272.3450 | 3817.0351 |
350 | 3.4636 | 346.3606 | 692.7212 | 1039.0818 | 1385.4424 | 1731.8030 | 5195.4089 |
400 | 4.5239 | 452.3893 | 904.7787 | 1357.1680 | 1809.5574 | 2261.9467 | 6785.8401 |
450 | 5.7256 | 572.5553 | 1145.1105 | 1717.6658 | 2290.2210 | 2862.7763 | 8588.3289 |
500 | 7.0686 | 706.8583 | 1413.7167 | 2120.5750 | 2827.4334 | 3534.2917 | 10602.8752 |
600 | 10.1788 | 1017.8760 | 2035.7520 | 3053.6281 | 4071.5041 | 5089.3801 | 15268.1403 |
700 | 13.8544 | 1385.4424 | 2770.8847 | 4156.3271 | 5541.7694 | 6927.2118 | 20781.6354 |
800 | 18.0956 | 1809.5574 | 3619.1147 | 5428.6721 | 7238.2295 | 9047.7868 | 27143.3605 |
900 | 22.9022 | 2290.2210 | 4580.4421 | 6870.6631 | 9160.8842 | 11451.1050 | 34353.3157 |
1000 | 28.2743 | 2827.4334 | 5654.8668 | 8482.3002 | 11309.7336 | 14137.1669 | 42411.5008 |
1200 | 40.7150 | 4071.5041 | 8143.0082 | 12214.5122 | 16286.0163 | 20357.5204 | 61072.5612 |
1400 | 55.4177 | 5541.7694 | 11083.5389 | 16625.3083 | 22167.0778 | 27708.8472 | 83126.5416 |
1600 | 72.3823 | 7238.2295 | 14476.4589 | 21714.6884 | 28952.9179 | 36191.1474 | 108573.4421 |
1800 | 91.6088 | 9160.8842 | 18321.7684 | 27482.6525 | 36643.5367 | 45804.4209 | 137413.2627 |
2000 | 113.0973 | 11309.7336 | 22619.4671 | 33929.2007 | 45238.9342 | 56548.6678 | 169646.0033 |
Ntim:
1. Ua ntej, qhwv lub flowmeter nyob rau hauv ib zaj duab xis yas, thiab ces muab tso rau hauv ib lub thawv export ntoo nrog shockproof ua npuas ncauj.
2. Cov neeg ua haujlwm packing kws tshaj lij ua cov khoom ntim.
Kev thauj mus los:
Txhawb nqa tus neeg xa khoom xa tuaj, txwv tsis pub peb yuav pab koj xaiv tus neeg xa khoom ncaj ncees.
(Siv FEDEX; Ups; DHL; TNT; EMS; thiab lwm yam.)
Rau ntau tshaj 10 units, huab cua, tsheb ciav hlau, thiab kev thauj mus los hauv hiav txwv raug pom zoo.
Lub sijhawm tsim khoom:
Hauv qab 20 teeb: 3-5 hnub ua haujlwm.
Lub hli ntau lawm: ntau tshaj 800 units
FAQ
1.Cov lus nug: Yuav ua li cas yog qhov zoo ntawm electromagnetic flowmeter?
Teb: Peb muaj ISO, CE thiab ROSH ntawv pov thawj, thiab ib pab neeg ua haujlwm calibration yuav ua qhov thib ob 5-point calibration ntawm flowmeter ua ntej tawm hauv lub hoobkas.
2. Q: Kuv puas tuaj yeem tau txais cov qauv?
Yog nws yog,
3.Q :: Koj puas tuaj yeem muab sijhawm luv tshaj rau kuv?
Teb: yog
4. Lo lus nug: Yuav ua li cas rau nruab lub electromagnetic flowmeter?
Teb: Peb tuaj yeem muab phau ntawv qhia kev teeb tsa thiab kev teeb tsa video ntawm flowmeter, thov koj xav tiv tauj peb.
5. Q: Kuv puas tuaj yeem tuaj xyuas koj lub Hoobkas?
Teb: Tau kawg,

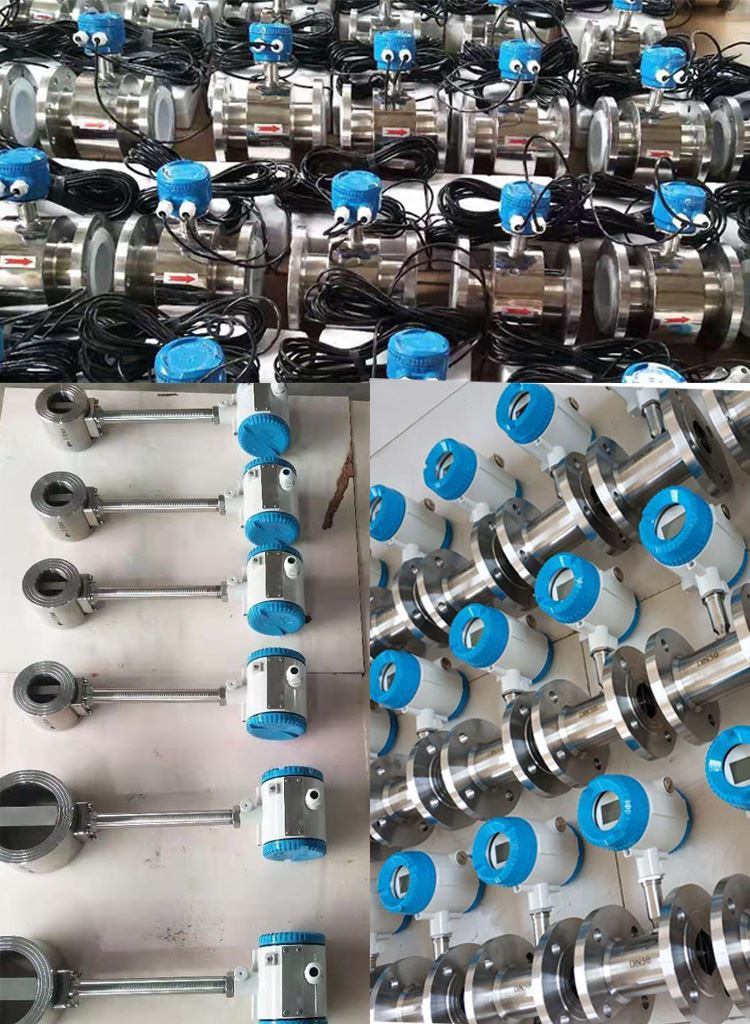

Hoobkas
