1. Nta:

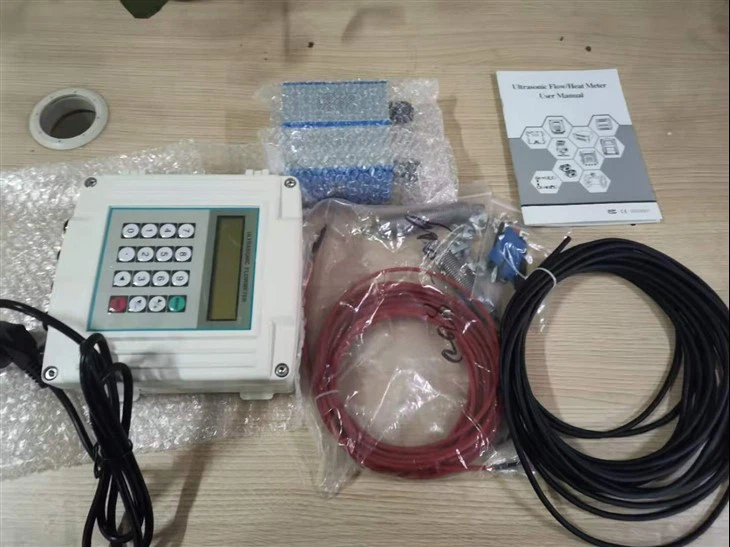

Lub TUF2000 ultrasonic flowmeter yog tsim los ntawm tus tswv tsev thiab ib qho khoom siv sab nraud. Thaum lub sij hawm installation, lub sab nraud clamp sensor tsuas yog yuav tsum tau kho (muab tshuaj txhuam) rau ntawm qhov chaw ntawm lub raj xa dej kom tiav qhov ntsuas ntws ntawm txhua cov kua. Piv nrog rau lub raj xa dej flowmeter: nws tsis tas yuav txiav tawm qhov ntws, kev teeb tsa yooj yim thiab nrawm, thiab kev teeb tsa tsis muaj kev puas tsuaj yog tiag tiag.

High-precision ultrasonic flowmeter TM-1 sensor

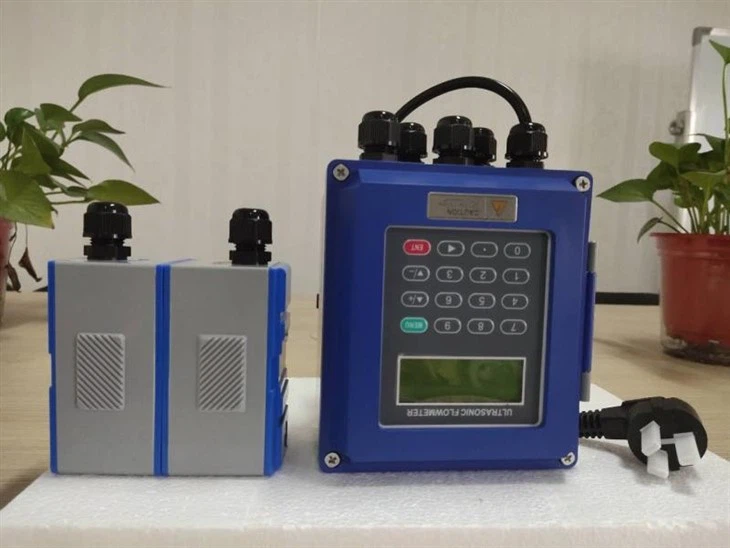

TUF2000S Wall-mounted Ultrasonic Flowmeter

2. Ultrasonic flow meter feem ntau yog siv rau hauv ntau daim ntawv thov kev lag luam los ntsuas cov dej ntws. Cov ntsuas ntsuas no muab cov kev ntsuas uas tsis muaj kev cuam tshuam, muaj tseeb thiab txhim khu kev qha rau ntau hom kua dej xws li tshuaj lom neeg, petrochemicals, dej, dej khib nyiab thiab slurries.

Common applications yog raws li nram no:

1. Kev faib khoom siv dej, 2. cov chaw kho dej khib nyiab, 3. cov chaw ua tshuaj, 4. Cov roj thiab cov roj refineries, 5. fais fab nroj tsuag, 6. HVAC systems, 7. Marine thiab offshore applications, 8. Khoom noj khoom haus thiab dej haus ntau lawm, 9. . Pharmaceutical manufacturing, 10. Pulp thiab paper mills, 11. Mining, 12. Biotechnology and medical research, 13. Aquaculture, 14. Sanitary sewer collection systems, 15. Irrigation systems, 16. In buildings cooling water and HVAC systems, 17. Kev ua liaj ua teb thiab ua liaj ua teb irrigation, 18. Seawater desalination nroj tsuag, 19. Municipal water and waste treatment systems, 20. Process control systems with liquid and gas industries, 21. Oil pipelines, 22. Dairy and Milk processing plant, 23. Kev kho dej thiab pom systems,

24. Thermal Energy Management Systems, 25. Boiler Feed Water Systems, 26. Liquid Fuel Metering Systems, 27. Biofuel Production Processes, 28. Municipal Fresh Water Supply Systems, 29. Ethanol Production Processes, 30. Industrial Cooling Water Systems, 31. Dej Distribution Systems, 32. Chemical Storage and Distribution Systems, 33. Industrial Cleaning Systems, 34. Potable Water Supply Systems, 35. Chemical Mixing Systems 36. Painting and Coatings Manufacturing

Feem ntau, lub 'meter' yog dav siv nyob rau hauv kev lag luam sib txawv, thiab nws muaj peev xwm ua tau zoo thiab txhim khu kev qha txaus ntsuas nyob rau hauv cov ntaub ntawv ntawm nruam ntws.

3. Kev ua haujlwm ib puag ncig:

Lub party: tiv thaiv qib IP67, av noo tsawg dua los yog sib npaug rau 85 feem pua RH, kub -20 ~ 60 degree

Sensor: tiv thaiv qib IP68, kub -30 ~ 160 degree

4.Basic parameters ntawm flowmeter:

Precision	± 1 feem pua
Kev nrawm nrawm	015m/s
Txoj kab uas hla	DN15-DN6000
Nruab nrab kub	-30 ~ 160 degree
General qeb ntawm kua	Dej, dej hiav txwv, dej phwj tuaj, kua qaub thiab alkali kua, cawv, npias, thiab ntau yam roj, thiab lwm yam., cov kua dej sib xws uas tuaj yeem xa cov nthwv dej ultrasonic.
Cov khoom siv yeeb nkab	Hlau, stainless hlau, cam khwb cia hlau, tooj liab, PVC, txhuas, fiberglass thiab lwm cov kav dej ntom ntom tau tso cai kom muaj hauv ob sab phlu.
Cov zis tawm	1 channel 4-20Ma tam sim no tso zis, impedance 0~1K, raug 0.1 feem pua 1 channel OCT mem tes tso zis, mem tes dav 6-1000ms. 1 relay tso zis,
Teeb liab input	3- txoj kev 4-20Ma tam sim no cov tswv yim, uas tuaj yeem siv los ua cov ntaub ntawv sau los txuas nrog peb-xaim PT100 platinum tsis kam kom paub qhov ntsuas kub
Kev sib txuas lus Interface	Kev rho tawm RS485 serial interface, txhawb MODBUS raws tu qauv
Cov ntaub ntawv khaws cia	SD daim npav tsis tu ncua khaws cov txheej txheem thiab ntsuas cov txiaj ntsig (yeem)
Fais fab mov	DC8 ~ 36V lossis AC85 ~ 264V
