1. Kev faib tawm los ntawm hom thiab txoj kev sib txuas:

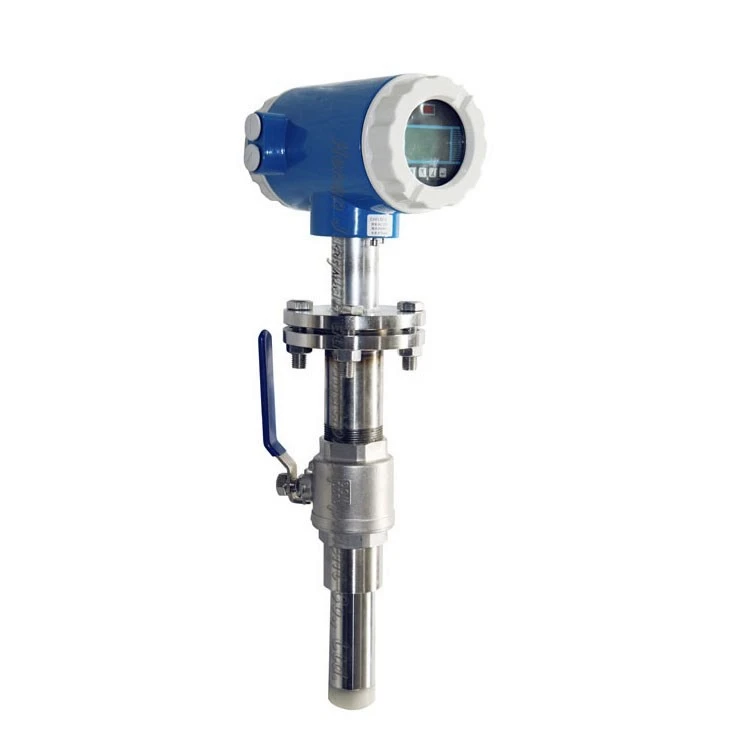

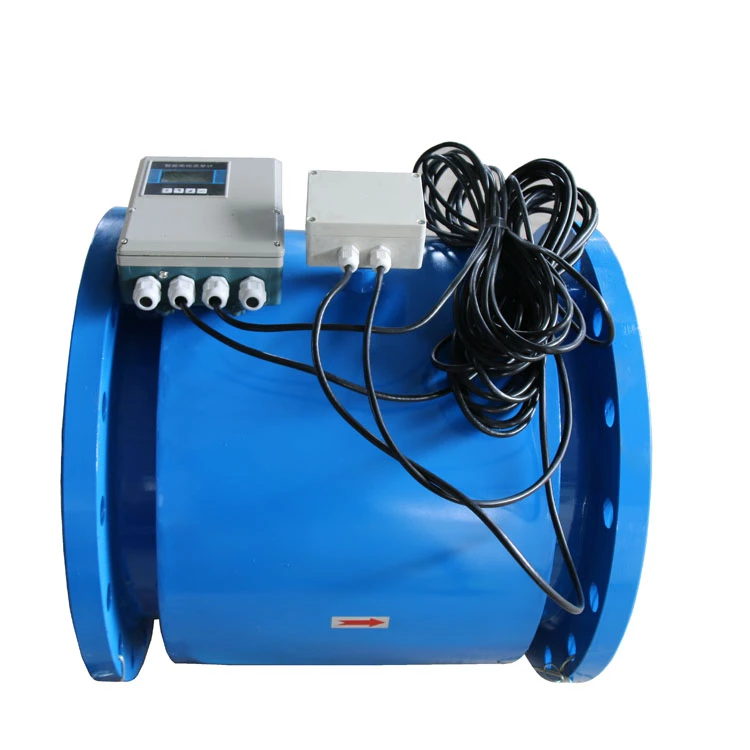

Hom: tej thaj chaw deb, integrated, plug-in

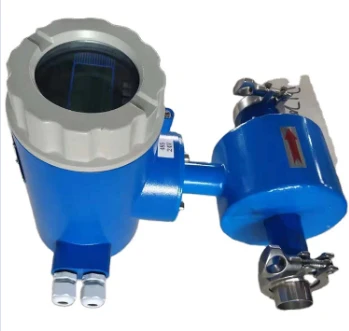

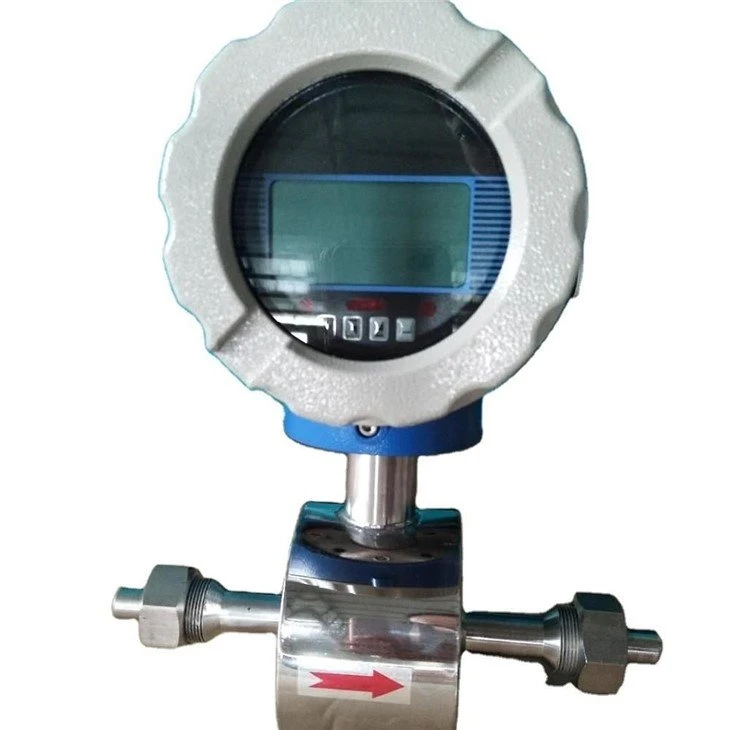

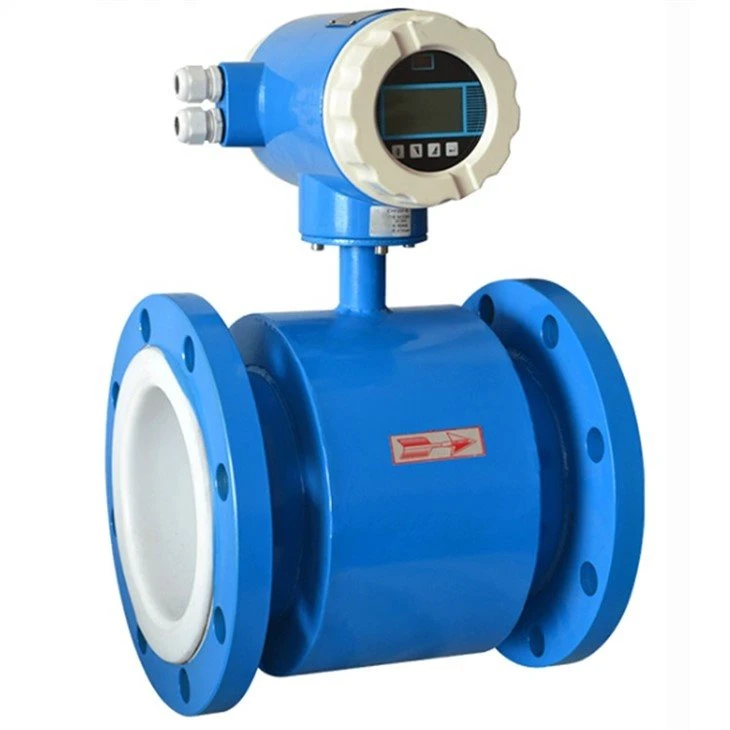

Kev sib txuas txoj kev: flange kev twb kev txuas, clamp kev twb kev txuas, threaded kev twb kev txuas.
Raws li qhia hauv qab no:
 |  |  |
 |  |  |
2. Nta thiab daim ntawv thov:
magnetic flow meters rau dej yog ib qho cuab yeej uas ntsuas qhov ntws ntawm cov kua conductive raws li lub hauv paus ntsiab lus ntawm Faraday txoj cai ntawm electromagnetic induction. Thaum cov kua conductive ntws nyob rau hauv cov yeeb nkab, nws txiav cov magnetic teb kab nyob rau hauv txoj kev ntsug, thiab ib tug induced hluav taws xob muaj peev xwm yog generated nyob rau hauv lub electrodes ntawm ob sab ntawm cov yeeb nkab. Qhov loj ntawm qhov induced muaj peev xwm yog proportional rau qhov nruab nrab ntws tus nqi ntawm conductive nruab nrab hauv cov yeeb nkab. Qhov loj ntawm qhov induced muaj peev xwm kis tau mus rau lub converter, thiab lub converter xam cov clockwise flow rate thiab cov cumulative flow rate.
⑴. Tsis muaj qhov cuam tshuam nyob rau hauv cov kav dej, qhov poob siab me me, qhov ntsuas dej ntau yog qhov loj, qhov sib piv ntawm qhov siab tshaj plaws ntws mus rau qhov tsawg kawg nkaus ntws feem ntau yog ntau tshaj 20: 1, thiab muaj feem xyuam rau cov yeeb nkab txoj kab uas hla. yog dav, mus txog 3 m.
⑵. Lub teeb liab tso zis yog linear nrog cov ntsuas ntws thiab muaj qhov tseeb siab. Nws tuaj yeem ntsuas tus nqi ntws ntawm tag nrho cov dej conductive xws li acids, alkalis, ntsev tov, dej, dej phwj tuaj, corrosive kua, av nkos, ntxhia pulp, ntawv pulp, thiab lwm yam nrog conductivity ntau dua los yog sib npaug li 5μs / cm. .
3.Technical Parameters:
Khoom npe | Dej Flow Meter |
Max ntws tus nqi | 15m/s |
Qib raug | ±0.5% ,±0.2% |
Ua kua conductivity | >5 μS / cm2 |
Nominal siab | 1.6Mpa (Yog xav tau kho, pls sab laj peb) |
Calibre | DN 6-DN3000 |

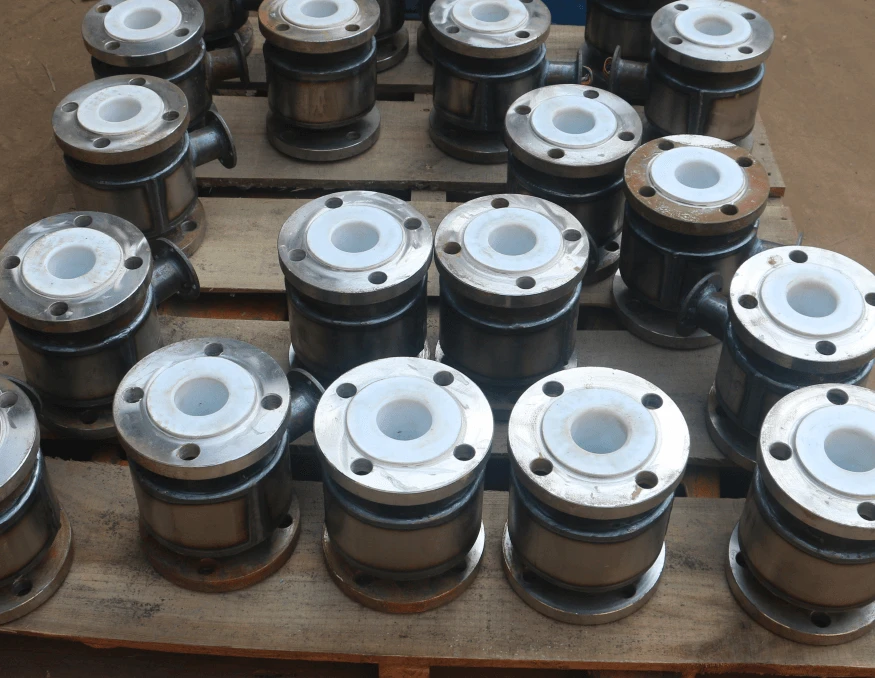

Cov khoom siv liner | PTFE, PFA, F46Hard roj hmab, Neoprene, Polyurethane, |
Hluav taws xob | SUS316, Hastelloy C(HC), Hastelloy B(HB) |
Ambient humidity | 5-100%RH( txheeb ze humidity) |
Ambient kub | -25 degree rau +60 degree |
Kev ntsuas ntau | 1500: 1, Tsawg dua lossis sib npaug li 15m / s |
Hom qauv | Compact type, Split type, plug-in type |
Kev tiv thaiv qib | IP68, IP67, IP65 (default) |
Ex-proof Mark | ExmdIIBT4 |
Fais fab mov | 24VDC, 220VAC, 3.6V lithium roj teeb |
Cov zis tawm | 4-20Ma output , pulse output |
Kev sib txuas lus raws tu qauv | Modbus RS485, Hart raws tu qauv |
4.Kev xaiv ntawmelectrodeskhoom
| Cov khoom siv hluav taws xob | Corrosion kuj |
SUS 316 | Rau kev lag luam dej, dej hauv tsev, dej phwj tuaj, corrosive media, dav siv hauv roj av, tshuaj, urea, thiab lwm yam lag luam. |
Stainless hlau coated tungsten carbide | Rau non-corrosive, heev abrasive media |
Tantalum (zeeg) | Muaj kev tiv thaiv corrosion zoo heev, thiab cov iav zoo sib xws, ntxiv rau hydrofluoric acid, fuming nitric acid, alkali, yuav luag txhua yam tshuaj lom neeg (xws li hydrochloric acid, sulfuric acid thiab aqua regia) corrosion. |
Titanium (Ti) | Nws yog resistant rau seawater, ntau yam chlorides thiab hypochlorites, oxidative acids (xws li fuming nitric acid), organic acids, alkalis, thiab lwm yam, thiab tsis resistant rau corrosion ntawm ntshiab txo acids (xws li sulfuric acid thiab hydrochloric acid). Txawm li cas los xij, yog tias cov kua qaub muaj cov oxidants (xws li nitric acid, Fe +++, Cu ++), qhov corrosion yog heev txo. |
Hastelloy C (HC) | Oxidative acid, xws li nitric acid, tov kua qaub los yog chromic acid thiab sulfuric acid tov nruab nrab corrosion, tab sis kuj resistant rau oxidizing ntsev xws li Fe +++, Cu ++ los yog lwm yam oxidants xws li hypochlorite tov saum hiav txwv qib, dej hiav txwv corrosion |
Platinum - iridium alloy | Yuav luag txhua yam tshuaj, tab sis tsis yog aqua regia thiab ammonium ntsev. |
Hastelloy B (HB) | Hydrochloric acid ntawm tag nrho cov concentrations hauv qab lub boiling point muaj zoo corrosion kuj, tab sis kuj sulfuric acid, phosphoric acid, hydrofluoric acid, organic acids thiab lwm yam non-oxidizing acid, alkali, non-oxidizing ntsev tov corrosion. |
5.Flow Range
Flow rate----flow comparison table | |||||||
| 0.01 | 1 | 2 | 3 | 4 | 5 | 15 |
15 | 0.0064 | 0.6362 | 1.2723 | 1.9085 | 2.5447 | 3.1809 | 9.5426 |
20 | 0.0113 | 1.1310 | 2.2619 | 3.3929 | 4.5239 | 5.6549 | 16.9646 |
25 | 0.0177 | 1.7671 | 3.5343 | 5.3014 | 7.0686 | 8.8357 | 26.5072 |
40 | 0.0452 | 4.5239 | 9.0478 | 13.5717 | 18.0956 | 22.6195 | 67.8584 |
50 | 0.0707 | 7.0686 | 14.1372 | 21.2058 | 28.2743 | 35.3429 | 106.0288 |
65 | 0.1195 | 11.9459 | 23.8919 | 35.8377 | 47.7836 | 59.7295 | 179.1886 |
80 | 0.1810 | 18.0956 | 36.1911 | 54.2867 | 72.3823 | 90.4779 | 271.4336 |
100 | 0.2827 | 28.2743 | 56.5487 | 84.8230 | 113.0973 | 141.3717 | 424.1150 |
150 | 0.6362 | 63.6173 | 127.2345 | 190.8518 | 254.4690 | 318.0863 | 954.2588 |
200 | 1.1310 | 113.0973 | 226.1947 | 339.2920 | 452.3893 | 565.4846 | 1696.4600 |
300 | 2.5447 | 254.4690 | 508.9380 | 763.4070 | 1017.8760 | 1272.3450 | 3817.0351 |
350 | 3.4636 | 346.3606 | 692.7212 | 1039.0818 | 1385.4424 | 1731.8030 | 5195.4089 |
400 | 4.5239 | 452.3893 | 904.7787 | 1357.1680 | 1809.5574 | 2261.9467 | 6785.8401 |
450 | 5.7256 | 572.5553 | 1145.1105 | 1717.6658 | 2290.2210 | 2862.7763 | 8588.3289 |
500 | 7.0686 | 706.8583 | 1413.7167 | 2120.5750 | 2827.4334 | 3534.2917 | 10602.8752 |
600 | 10.1788 | 1017.8760 | 2035.7520 | 3053.6281 | 4071.5041 | 5089.3801 | 15268.1403 |
700 | 13.8544 | 1385.4424 | 2770.8847 | 4156.3271 | 5541.7694 | 6927.2118 | 20781.6354 |
800 | 18.0956 | 1809.5574 | 3619.1147 | 5428.6721 | 7238.2295 | 9047.7868 | 27143.3605 |
900 | 22.9022 | 2290.2210 | 4580.4421 | 6870.6631 | 9160.8842 | 11451.1050 | 34353.3157 |
1000 | 28.2743 | 2827.4334 | 5654.8668 | 8482.3002 | 11309.7336 | 14137.1669 | 42411.5008 |
1200 | 40.7150 | 4071.5041 | 8143.0082 | 12214.5122 | 16286.0163 | 20357.5204 | 61072.5612 |
1400 | 55.4177 | 5541.7694 | 11083.5389 | 16625.3083 | 22167.0778 | 27708.8472 | 83126.5416 |
1600 | 72.3823 | 7238.2295 | 14476.4589 | 21714.6884 | 28952.9179 | 36191.1474 | 108573.4421 |
1800 | 91.6088 | 9160.8842 | 18321.7684 | 27482.6525 | 36643.5367 | 45804.4209 | 137413.2627 |
2000 | 113.0973 | 11309.7336 | 22619.4671 | 33929.2007 | 45238.9342 | 56548.6678 | 169646.0033 |

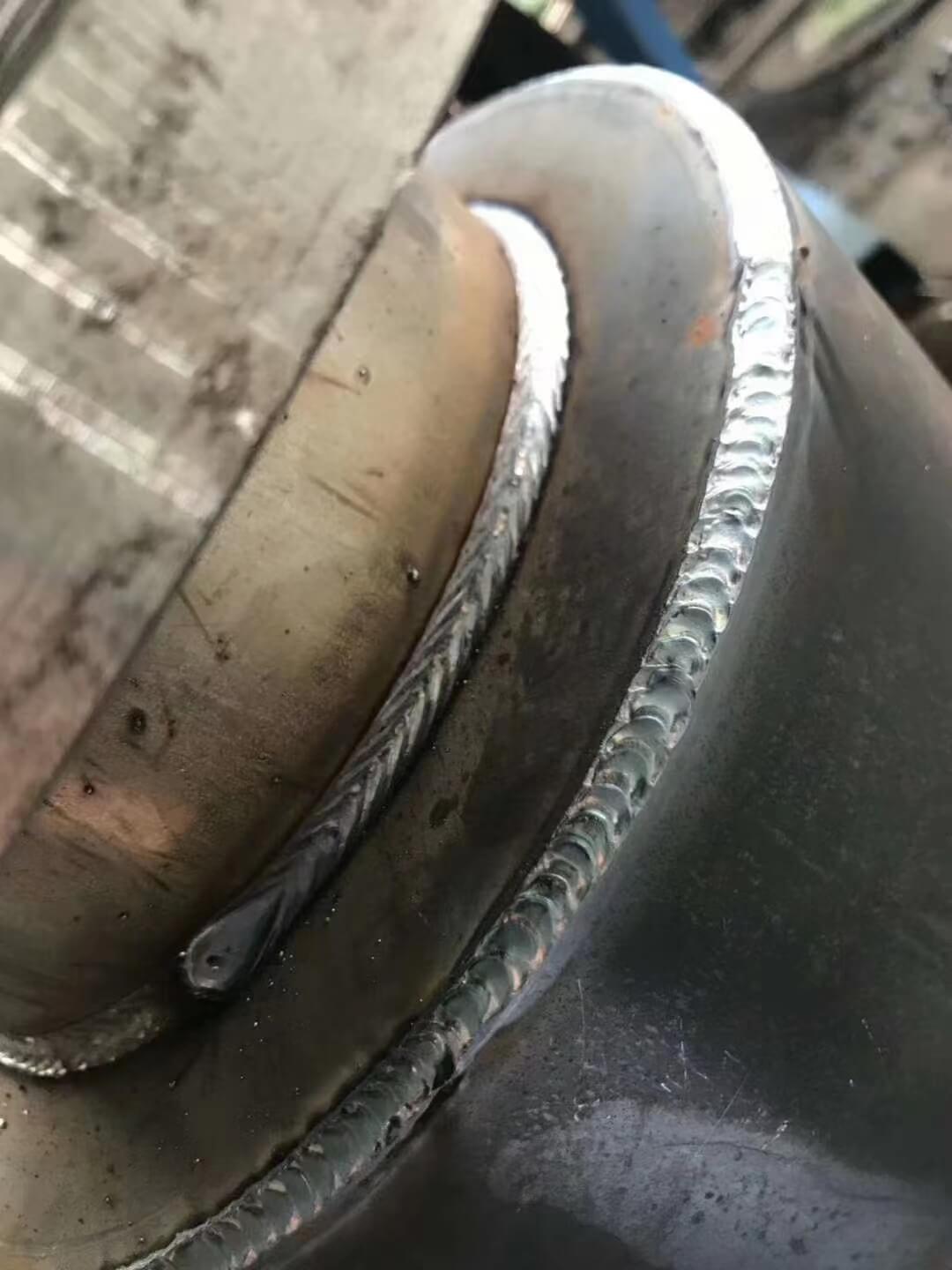

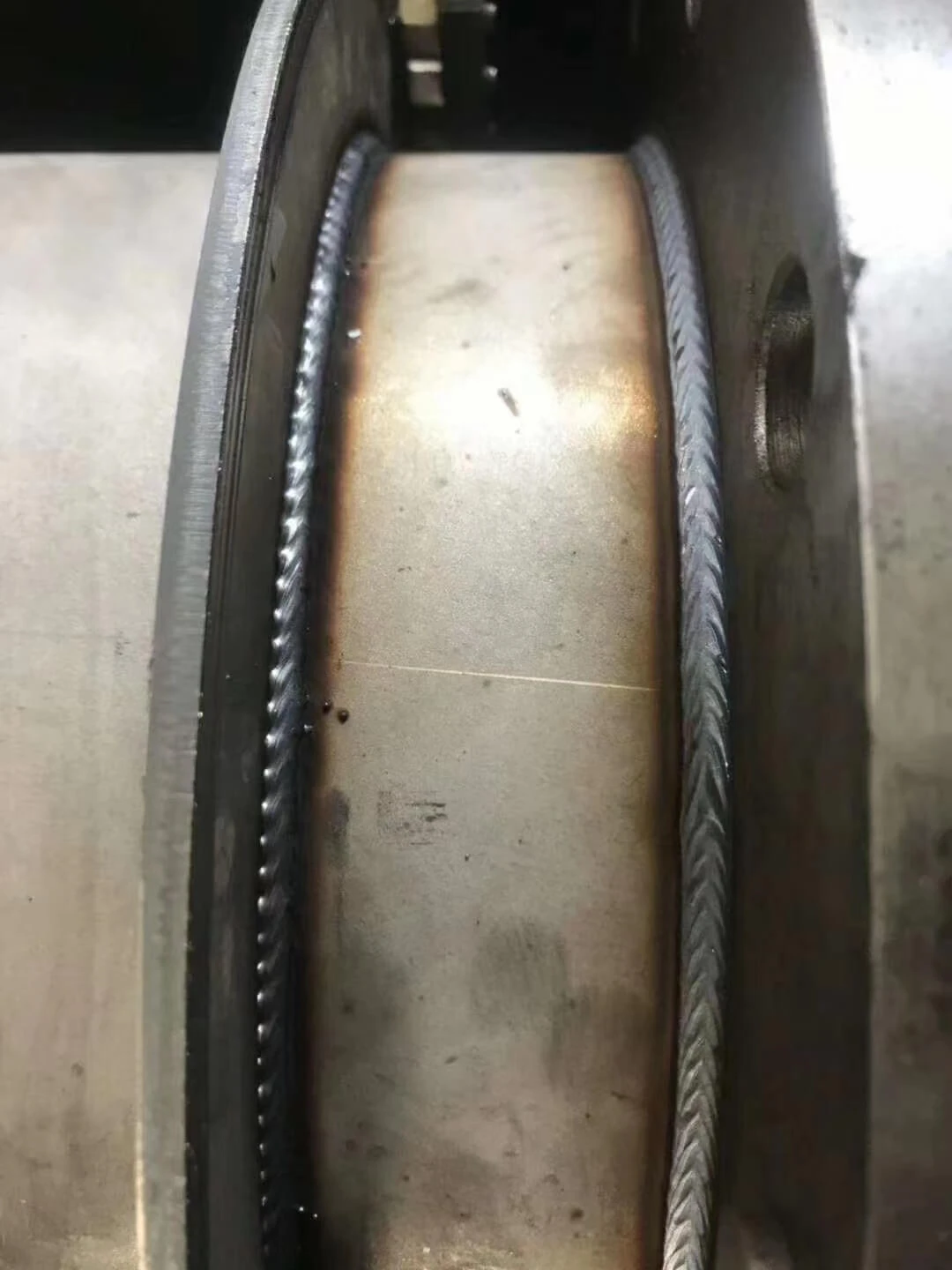

6.Qhov vuam:
Kev sib nqus ntawm cov ntsuas dej sib nqus rau cov dej kuj yog ib feem tseem ceeb. Peb siv argon arc vuam rau seamless vuam los xyuas kom meej cov qib kev tiv thaiv thiab kev pab cuam lub neej ntawm cov ntws sensor.
 |  |
 |  |
7.FAQ
Q: Koj puas yog cov chaw tsim khoom?
A: Yog, peb yog cov chaw tsim khoom, peb tuaj yeem muab koj qhov zoo tshaj plaws flow meter thiab tus nqi sib tw .Can ua tau raws li koj cov kev xav tau.
Q: Koj puas muaj daim ntawv pov thawj? Koj puas tuaj yeem muab daim ntawv pov thawj raws li kuv qhov kev thov?
A: Peb muaj ISO thiab CE daim ntawv pov thawj. Yog tias koj xav tau lwm daim ntawv pov thawj, peb tuaj yeem thov.
Q: Dab tsi yog qhov warranty rau koj cov khoom?
A: Ob xyoos lav lub sijhawm.

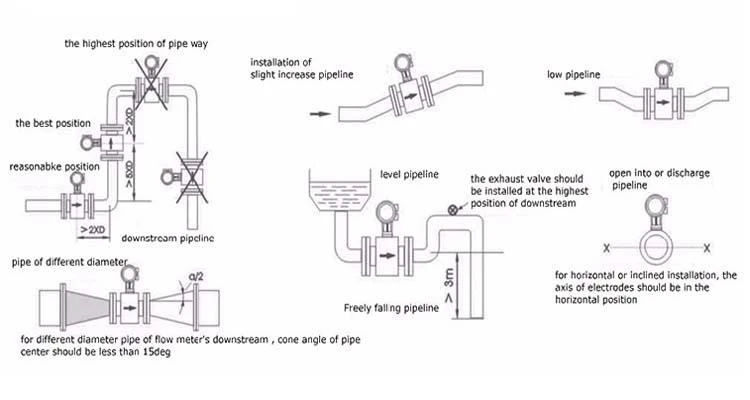

8. Txoj kev txhim kho kom raug:
9. Hais txog peb:
Henan Junyuan lub tuam txhab muaj cov cuab yeej siv ntau lawm thiab kev pabcuam zoo tom qab muag. Cov khoom tseem ceeb yog: electromagnetic water flowmeter, vortex air flow meter, turbine oil flow meter, ultrasonic water flow meter, throttling device, rota meter, ua tiav txheej tsis siv neeg ntws ntsuas, Nws tau siv dav hauv hluav taws xob, metallurgy, dej thiab dej. , roj av, ntawv ua, tshuaj, tshuaj, lub teeb kev lag luam, kev tiv thaiv ib puag ncig thiab lwm yam departments.
Peb lub tswv yim: nrhiav kev ua tau zoo, kev tshaj lij.
Peb lub hom phiaj: kom muaj sia nyob los ntawm peb qhov zoo, kom yeej cov lus ntawm lub qhov ncauj los ntawm peb qhov kev pabcuam.
 |  |
 |  |
Yog tias koj muaj lus nug ntxiv, thov hu rau peb, peb yuav muaj cov neeg muag khoom muag los tiv tauj koj los teb tag nrho koj cov lus nug! ! !
