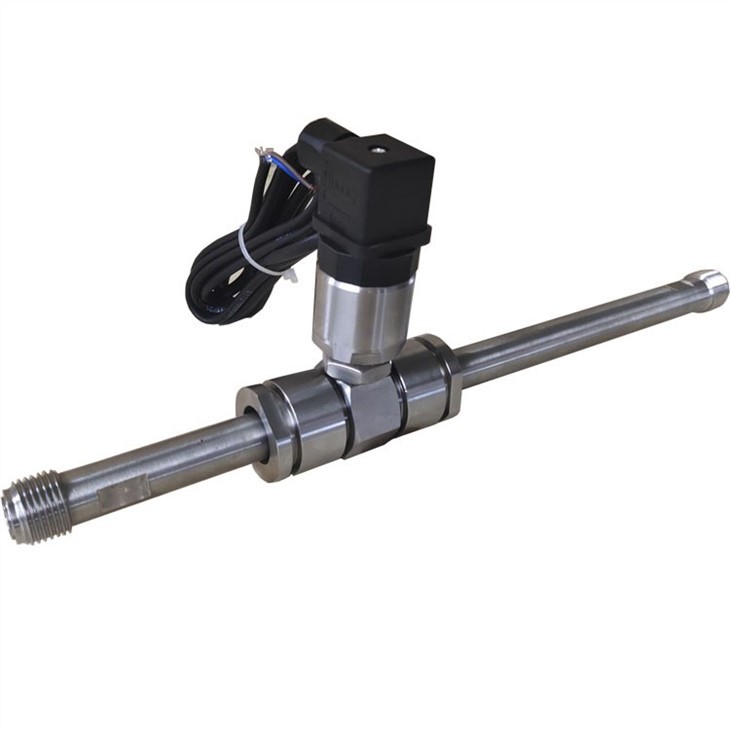

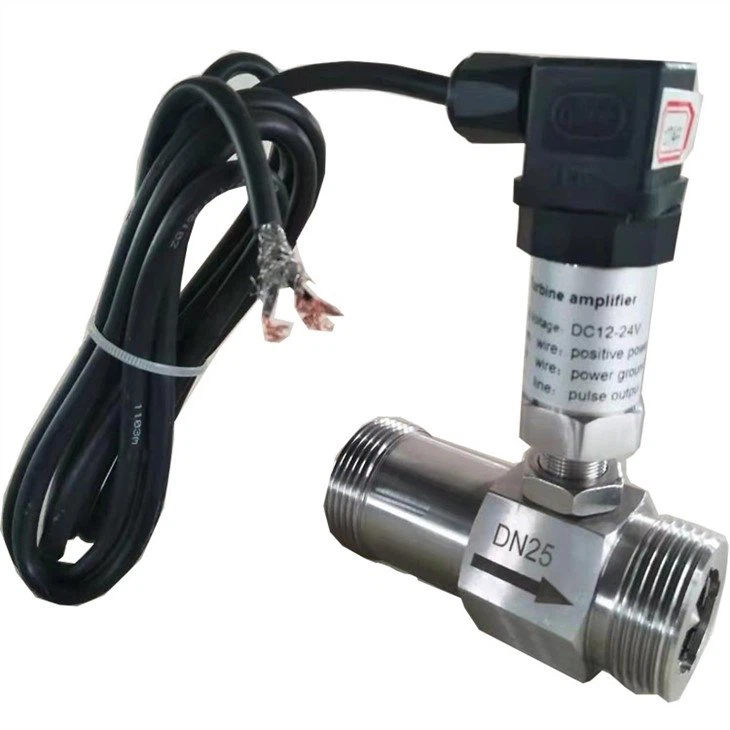

Kua Turbine Flow Meter

Lub twj tso kua mis turbine flow meter uas yoog tau los ntsuas cov kua dej thiab tag nrho cov dej ntws ntawm cov viscosity tsawg, nws tuaj yeem siv dav hauv kev lag luam roj av, tshuaj lom neeg kev lag luam, metallurgy, kev tshawb fawb tshawb fawb los ntsuas lossis tswj, ntau cov khoom tsim tawm thiab cov qauv siv tau. raug xaiv.

Liquid turbine flow meter

txoj cai ua haujlwm
kua turbine flow meteris siv rau volumetric tag nrho ntws thiab / los yog flow rate ntsuas thiab muaj ib tug kuj yooj yim txoj kev ua hauj lwm.

Raws li cov kua ntws los ntawm lub turbine meter, nws impinges raws li turbine blades uas tsis muaj rotate txog ib axis raws cov kab nruab nrab ntawm lub turbine vaj tse.

Lub angular (rotational) tshaj tawm ntawm lub turbine rotor yog ncaj qha proportional rau cov dej tshaj tawm uas ntws los ntawm lub turbine.

Cov txiaj ntsig tau txais yog coj los ntawm cov khoom siv hluav taws xob uas tau teeb tsa rau ntawm lub ntsuas ntsuas lub cev.

Daim ntawv thov
1.Liquid Water Turbine Flow Meter yog tsim rau roj av, tshuaj lom neeg, metallurgical thiab lwm yam sectors, thiab yog siv los ntsuas cov kua dej uas tsis muaj viscosity xws li dej, roj av, thiab diesel.
2.Long kev pab cuam lub neej, siab raug thiab muaj zog ntseeg. Lub siab poob qis heev.

Nta

* Qhov tseeb 0.2%, 0.5%, 1% yeem
* Wearable Tungsten carbonized ncej thiab cov kabmob, ua tib yam nrog qhov nruab nrab ntawm slly
* Erode-resistant Ua tib yam nrog dej hiav txwv, ammonia, acetometer, thiab lwm yam.
*Bi-direction Ntsuas bi-direction flow (yeem)
* Fais fab mov 24V DC
*Explode-proof Ex dBT4

Technical tsis

Cov khoom npe	Turbine flow meter
Nominal Txoj kab uas hla (mm)	DN4-DN 200 hli
Nruab nrab	Dej, diesel, roj, roj, roj hydraulic, roj, LPG, thiab lwm yam
Qhov tseeb Class	Hom qauv yog 1%, Customized rau 0.5% thiab 0.2%
Cov khoom siv cuab yeej	SS304; SS316; lwm.
Nruab nrab kub	Nruab nrab: -20 ~ 120 ℃
Kev sib txuas	Xov, Flange, Tri-clamp
Teeb liab tso zis	4-20mA lossis mem tes tso zis
Muab Lub Zog	AC220V, DC12-24V lossis Lithium roj teeb
Teeb liab kab Interface	Internal xov M20 × 1.5
Explode-proof Class	ExdIIBT6
Chav kawm tiv thaiv	IP65
Ntsiab lus	turbine flow meter rau cov kua txiv hmab txiv ntoo

Turbine flow meter hom

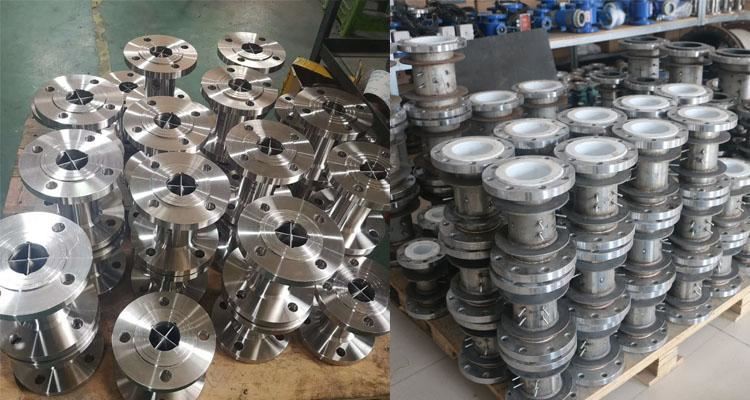

Hoobkas
