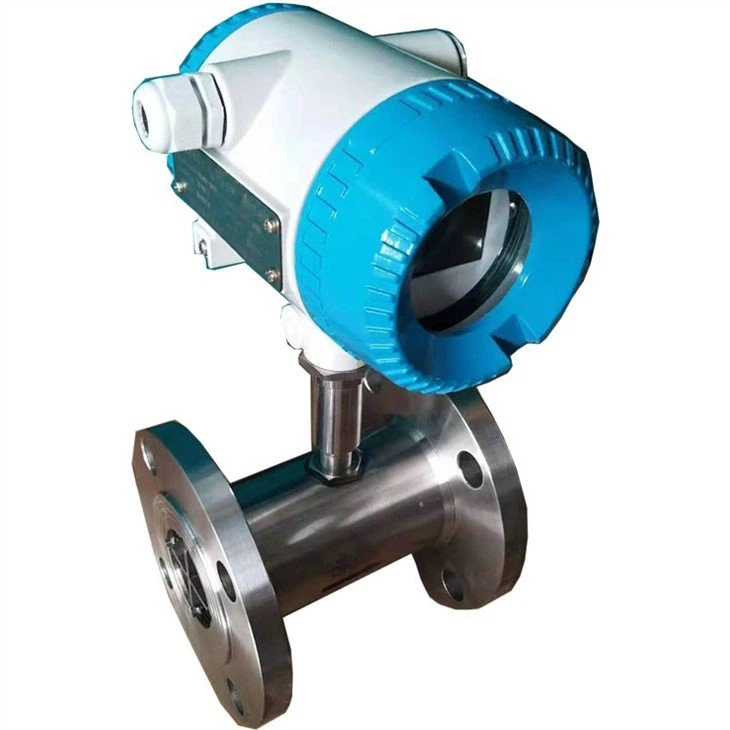

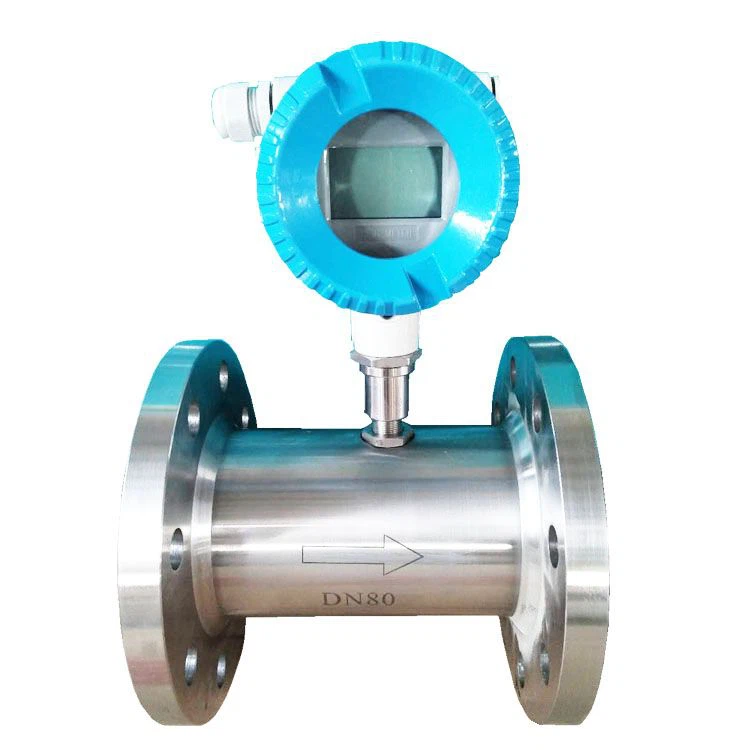

Roj Flow Meter

Turbine Roj Flow meter yog ib qho kev txawj ntse turbine flow meter muaj xws li turbine flow sensor thiab cov cuab yeej tso saib. Lub sensor muaj cov yam ntxwv ntawm qhov raug siab, zoo repeatability, lub neej ntev thiab kev ua haujlwm yooj yim. Nws tuaj yeem siv dav hauv roj av, tshuaj lom neeg, metallurgy, ntawv ua thiab lwm yam lag luam los ntsuas qhov ntim tam sim ntawd thiab tag nrho cov kua dej.

Advantage:

1. Lub turbine roj flow meter, lub siab poob yog me me, thiab lub impeller muaj anti-corrosion muaj nuj nqi

2. Nws tuaj yeem tso tawm rau ntawm qhov chaw, tam sim no ntws, cumulative tag nrho

3. Lub zog ntawm tag nrho lub tshuab yog tsawg, thiab nws tuaj yeem ua haujlwm tau ntev nrog lub roj teeb sab hauv. Nws yog ib qho zoo tagnrho passive zaub ntsuas

4. EEPROM yog siv los tiv thaiv qhov ntsuas qhov ntsuas qhov sib npaug ntawm lub zog tsis ua haujlwm, thiab lub sijhawm tiv thaiv yog ntau tshaj 10 xyoo.

Qauv

Oil Flow Meter

Cov ntsuas hluav taws xob ua haujlwm
Ua hauj lwm fais fab mov: sab nraud fais fab mov: +24VDC
Cov khoom siv hluav taws xob sab hauv: 3.6V lithium roj teeb (lithium roj teeb tuaj yeem siv tau ntau tshaj ob xyoos)
Cov zis hom: mem tes teeb liab 4 ~ 20mA tam sim no teeb liab, coj tus nqi 0 ~ Qmax, 20mA coj tus nqi ntws tuaj yeem tsim los ntawm tus neeg siv. RS485 kev sib txuas lus: tuaj yeem xa cov dej ntws tam sim ntawd thiab sib sau ua ke, sijhawm thiab hnub tim
3. Cov cim pov thawj tawg: Exd Ⅱ BT4
4. Kev tiv thaiv qib: IP65

Technical tsis

	LWGY					Kev piav qhia
Hom						Yam yooj yim, +5-24DCV fais fab mov
						4-20Ma ob-xaim tam sim no tso zis, tej thaj chaw deb kis hom
						Teb zaub / 4-20Ma ntim zaub cov zis tam sim no
						Roj teeb powered teb zaub
						RS485 kev sib txuas lus tso zis
Nominal txoj kab uas hla (mm)		4				0.04-0.25m3/h
		6				0.1-0.6m3/h
		10				0.2-1.2m3/h
		12				0.2-2m3/h
		15				0.6-6m3/h
		20				0.7-7m3/h
		25				1-10m3/h
		32				1.5-15m3/h
		40				2-20m3/h
		50				4-40m3/h
		65				7-70m3/h
		80				10-100m3/h
		100				20-200m3/h
		125				25-250m3/h
		150				30-300m3/h
		200				80-800m3/h
Cov pov thawj tawg						Tsis muaj cov cim yog Tsis-explosion pov thawj
Cov pov thawj tawg			B			Hom tawg pov thawj
Qib raug				A		0.5 qib
Qib raug				B		1 qib
Turbine flow meter hom					A	Dav dav turbine flow meter
Turbine flow meter hom					B	Ordinary turbine flow meter

Turbine flow meter hom

Txais tos xa peb nug!
